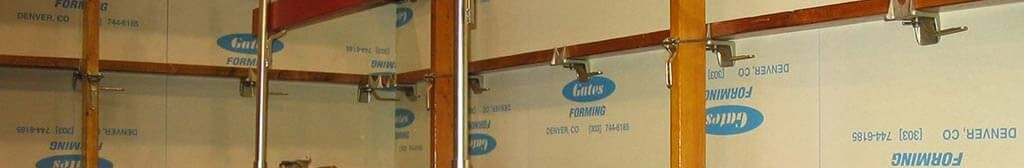

Camlock Ties

The Quicker Hand Set System

• Gates’ hand-set forming system
• Cam Lock Bracket engages the loop-end tie, securely holding the 2×4 waler into place
• Stiffback Clamps attach to Cam Lock Brackets anywhere a 2×4 stiffback member is needed
• Self-centering plastic cushion cones seat tightly to the form providing a neat & clean breakback
• Cam Lock ties are self spreading with a metal washer embedded into each cone
• 1”, 1 1⁄2”, or 2” depth cones or washers
• Cam Lock ties eliminate the need for long and short end ties by utilizing one standard end length

Typical Form Design

• Typical tie pattern is 16”x24” using common forming materials (2×4 lumber and 3⁄4” plywood form face)
• 2250# safe working load (2:1 safety factor) adjust tie pattern/pour rate according to specific job requirements
• Uses less lumber and requires less nailing than other typical wood-based hand-set systems
• Customizable and flexible system—adaptable to most other types of wall forming systems
• Stackable—use with Gates Scaffold Brackets

Versatile Forming System

• Great for radius forming—ask about pre-cut wood radius walers—form perfect curved walls
• Virtually all commercial jobsites have forming requirements ideally suited for the Cam Lock System—combine with Gates Anchor Lock Gang Systems
• Cam Lock Brackets, Stiffback Clamps, and Scaffold Brackets are plated for corrosion resistance—Gates hardware is available for rental
